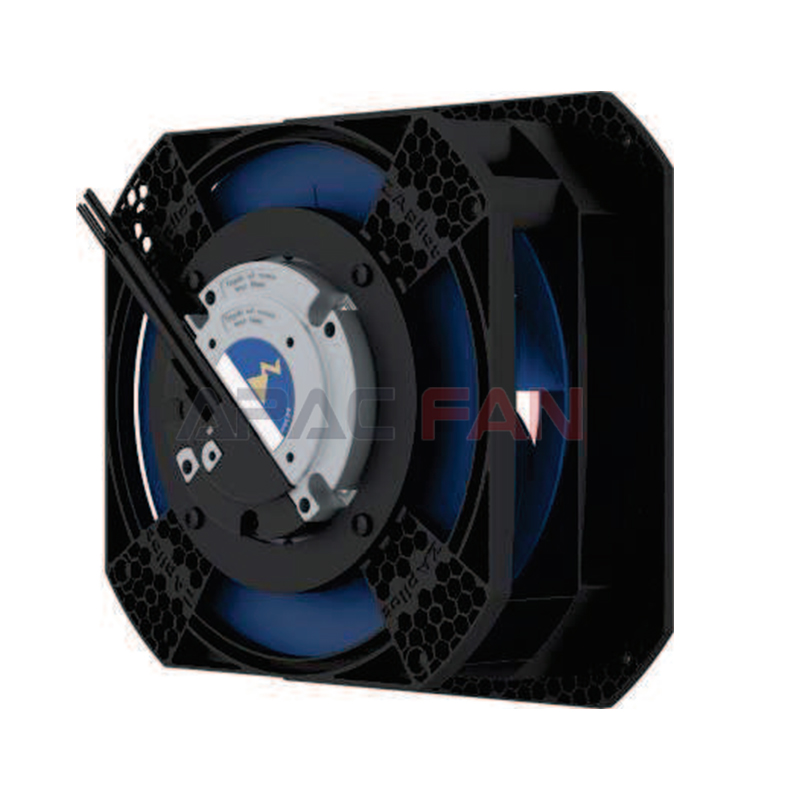

GR22V-4IP.ZC.AR 178088 ZIEHL-ABEGG Centrifugal Fan

Brand：

ZIEHL-ABEGG

Category：

Centrifugal Fan

Description：

Brand：ZIEHL-ABEGG
Part No：GR22V-4IP.ZC.AR 178088
Fan Type：Centrifugal Fan
Rated Voltage(V)：1~200-240
Size(mm)：220
Max.Air Flow(m³/h)：1380
Max.Pressure(Pa)：795
Input Power(W)：170
Speed(rpm):3230

00852-56261528 info@apacfan.com

Nominal data

Brand：

ZIEHL-ABEGG

Part No.：

GR22V-4IP.ZC.AR 178088

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

1~200-240

Size(mm)：

220

Max.Air Flow(m³/h)：

1380

Max.Pressure(Pa)：

795

Input Power(W)：

170

Speed(rpm)：

3230

Noise(db)：

Description

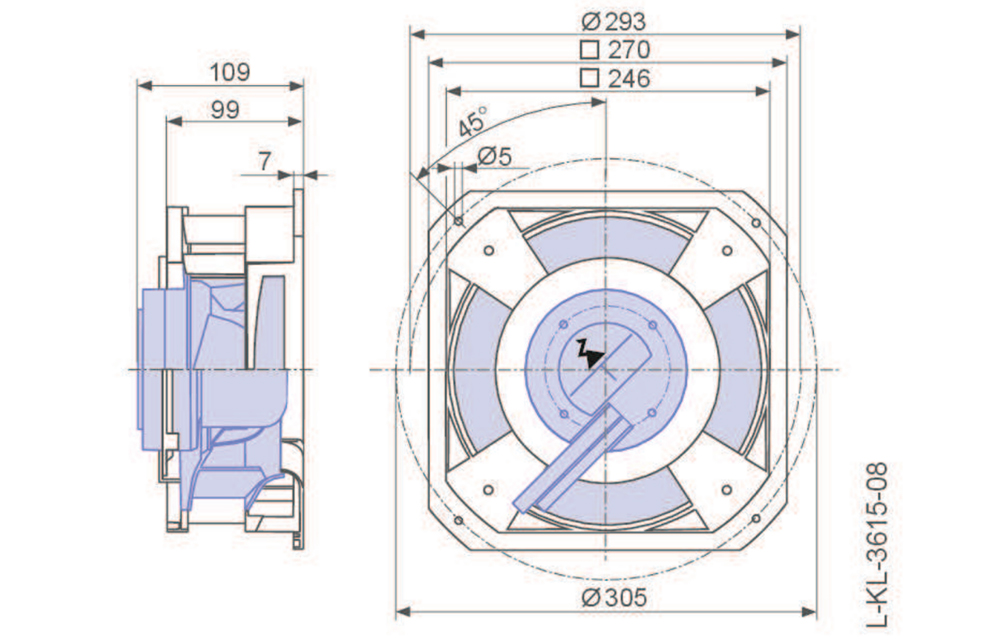

GR22V-4IP.ZC.AR 178088 Ziehl-abegg Specification drawing：
